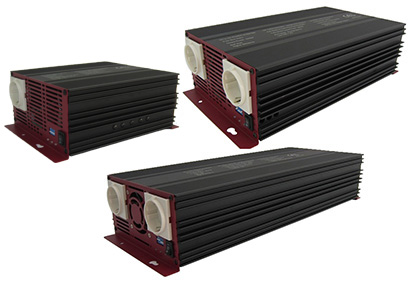

Pure Sine Wave Inverter - A801-700WS-3000WS

Model

700W

1000W

1500W

2000W

3000W

Capacity

700W

1000W

1500W

2000W

3000W

Output Power
Continuous
Surge
Turbo Mode

700W
1400W
840W

1000W
2000W
1200W

1500W
3000W
1800W

2000W
4000W
2400W

3000W
6000W
3600W

Output Voltage

100VAC / 110VAC / 115VAC / 120VAC (Dip Switch Selectable)
200VAC / 220VAC / 230VAC / 240VAC (Dip Switch Selectable)

Output Frequency

50Hz / 60Hz (Dip Switch Selectable)

Wave Form

Pure Sine Wave

THD

<3.0% (Normal Voltage * 1.1)

Input Voltage Range
12VDC
24VDC
48VDC

10.5VDC ~ 16.5VDC
21.0VDC ~ 33.0VDC
42.0VDC ~ 66.0VDC

Max Efficiency
12VDC
24VDC
48VDC

92%
93%
93%

No Load Power Consumption
12VDC
24VDC
48VDC
ECO Mode

< 1.26A
< 0.63A
< 0.323A
< 1W

< 1.36A
< 0.68A
< 0.34A
< 1W

< 1.63A
< 0.82A
< 0.41A
< 1W

< 1.94A
< 0.97A
< 0.49A
< 1W

< 2.62A
< 1.31A
< 0.66A
< 1W

Low Battery Alarm
12VDC
24VDC
48VDC

11.0VDC
22.0VDC
44.0VDC

High Battery Alarm
12VDC
24VDC
48VDC

16.0VDC
32.0VDC
64.0VDC

Protection

DC Input Polarity Reversed / DC Under Voltage / DC Over Voltage / Output Short Circuit / Overload / Over Temperature

Environment
Operating Temperature
Storage Temperature
Humidity

-20ﾟC ~ 60ﾟC (De-rating Begin 40ﾟC ~ 60ﾟC)
-30ﾟC ~ 70ﾟC
95%, non-condensing

Dimension (L * W * H) mm

210*193*95

250*193*95

310*193*95

375*193*95

455*193*95

Weight (kgs)

2.5

3.2

3.9

5.3

6.4

Remote Control (Option)

Yes

GFCI (Option)

Yes
