A301-150W

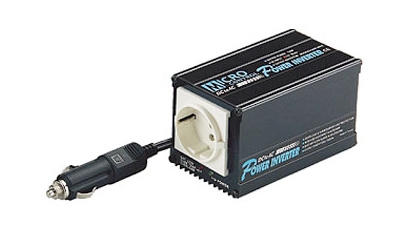

A301-150W DC AC Power Inverter
    Product Name : A301-150W
    Product Description

    ITEMS DC12V DC24V
    OUTPUT POWER

    150W CONTINUE
    300W FOR SURGE OUTPUT
    INPUT VOLTAGE DC 10~15 v DC 20~30 V
    OUTPUT VOLTAGE AC 100 V,110 V,120 V,220 V,230 V,240 V
    OUTPUT VOLTAGE REGULATION

    +/- 5 %
    OUTPUT WAVEFORM MODIFIED SINE WAVE
    OUTPUT FREQUENCY 50 OR 60 HZ
    BATTERY LOW SHUTDOWN DC 10+/- 0.5V DC 20 +/- 0.8 V
    BATTERY LOW SHUTDOWN DC 9.5 +/- 0.5 V DC 19 +/- 0.8 V
    STANDBY CURRENT 0.2A 0.2A
    EFFICIENCY

    90%
    THERMAL PROTECT 60 +/- 0.5oC
    COOLING BY AIR CONVECTION
    PROTECTIONS
    • SOFT START
    • OUTPUT SHORT : SHUTDOWN
    • INPUT POLARITY REVERSE : BY FUSE
    • HIGH VOLTAGE INPUT :SHUTDOWN
    • LOW VOLTAGE INPUT : SHUTDOWN ※OVERLOAD : SHUTDOWN
    • OVERTEMPERATURE : SHUTDOWN AFTER BUZZER KEEP
      SOUNDING FOR ONE MINUTE
    • BATTERY LOW : ALARM
    • TROUBLE DISPLAY : LED
    FUSE 15 A 10 A
    AC OUTLET ONE AC OUTLET
    SIZE ( LxWxH ) 122x77x45 mm (TYPE 1, 2)
    122x77x70 mm (THE OTHER)
    WEIGHT 0.45 kgs (TYPE 1,2)
    0.55 kgs (THE OTHER)
